1. product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB

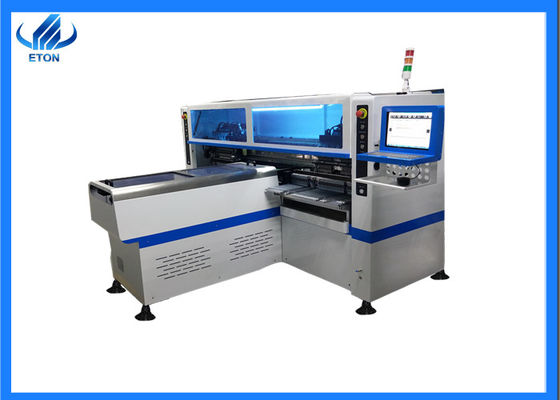

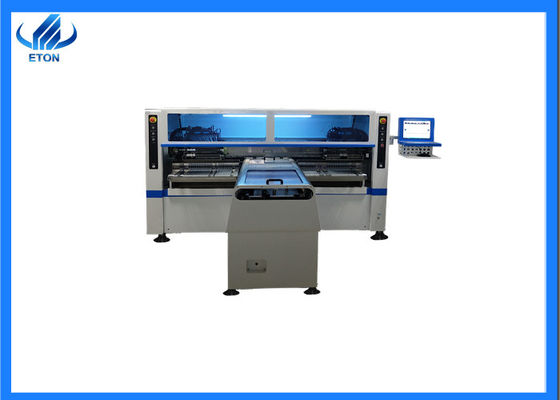

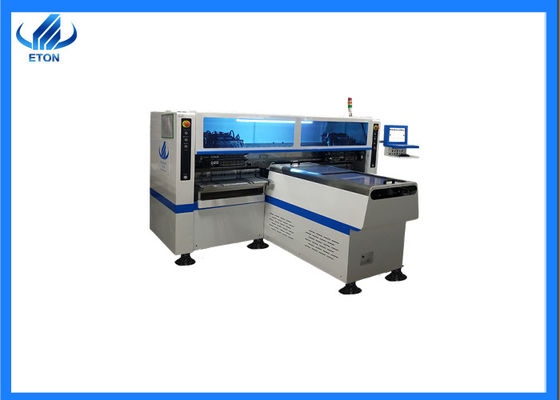

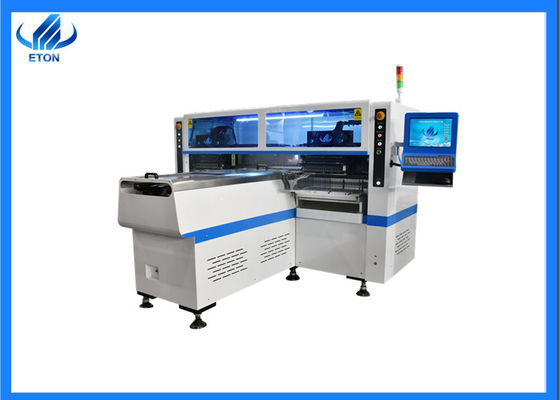

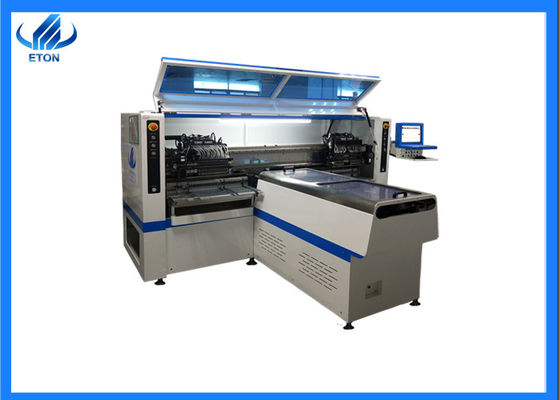

Technical parameter of pick and place machine ht-t9
| Model number | HT-T9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
product features of smt mounter ht-t9
Product parts of high speed mounter ht-f9
Business terms
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port |
Shenzhen |
our services
Company information
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
Packing & shipping of smt mounter ht-t9
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
