product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

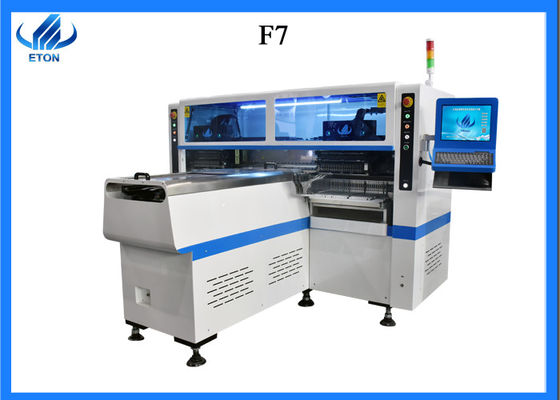

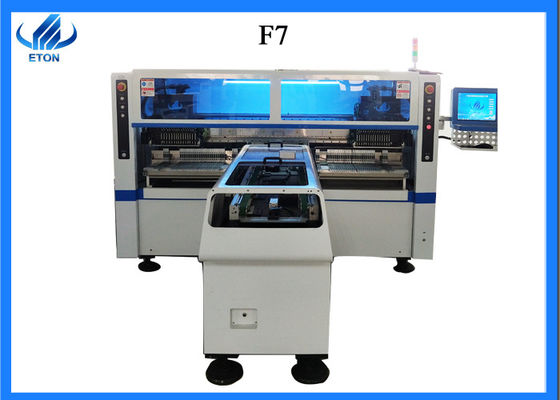

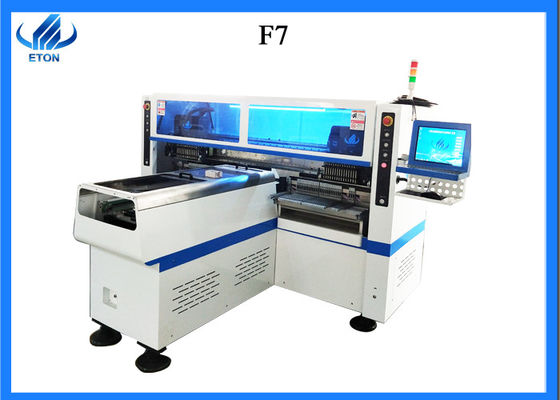

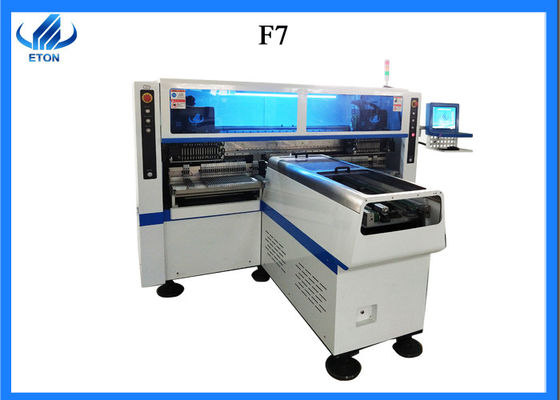

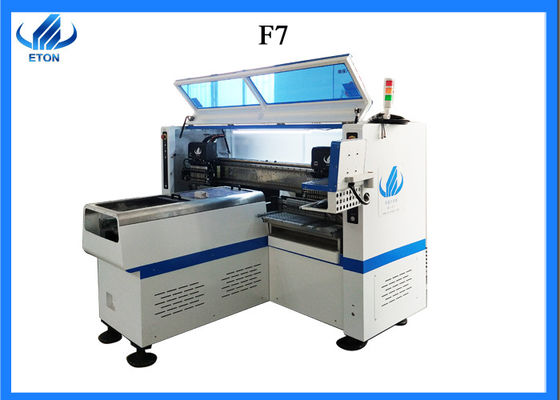

technical parameter of smt mounter ht-f7
| Model number | HT-F7 |
| Dimension | 2700*2120*1550mm |
| PCB size | 80*330～1200*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 34pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
product features of smt mounter ht-f7
product parts of pick and place machine ht-f7
Packing and transportation
Company profile
In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.
business terms
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained "Shenzhen high-tech enterprise", "national high-tech enterprise", “Shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
our services
Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
