تفاصيل المنتج:
شروط الدفع والشحن:
|
| حجم ثنائي الفينيل متعدد الكلور: | 250 مم * بأي طول | المشبك ثنائي الفينيل متعدد الكلور ؛ جي: | ضغط هوائي قابل للتعديل |
|---|---|---|---|
| النظام: | ويندوز 7 | البرمجيات: | r & d بشكل مستقل |
| عرض: | شاشة تعمل باللمس | جهاز الإدخال: | فأرة لوحة المفاتيح |
| رقم الكاميرا: | 5 | قوة: | 380AC 50 هرتز |
| استهلاك الطاقة: | 6 كيلو وات | وضع التركيب: | مجموعة من العصا |
| مكونات الفضاء: | 0.2 مم | محطات التغذية: | 64 قطع |
| فوهات: | 64 قطع | تصاعد السرعة: | 200000CPH |
| اعالي الجبال: | 13 ملم |

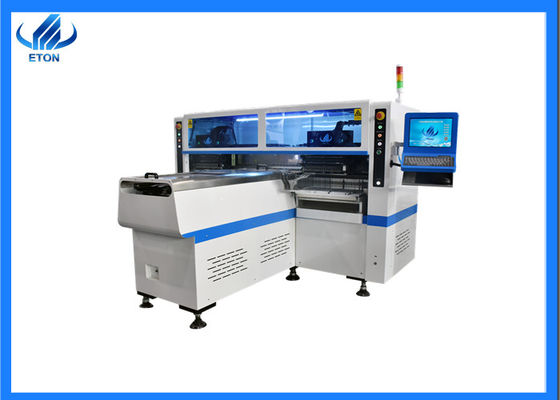

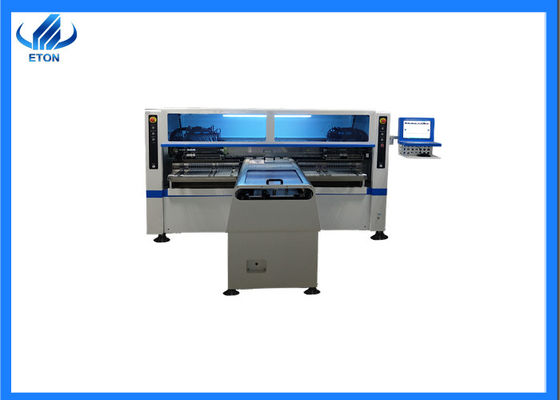

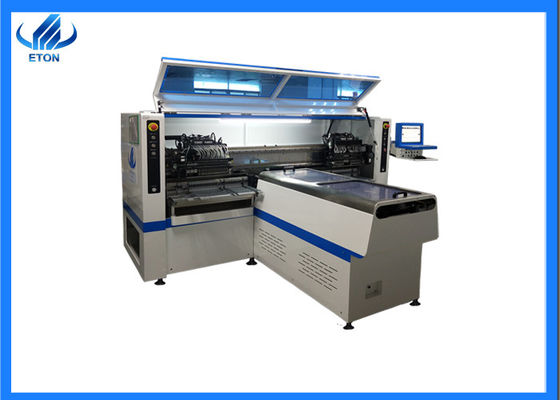

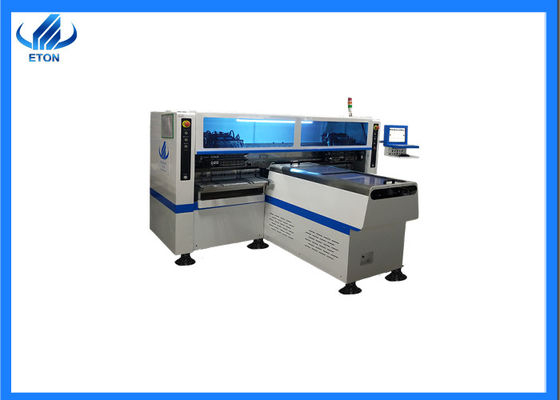

1.product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB
2.product features of high speed pick and place machine
2.technical parameter of smt mounter machine
| Model number | HT-T9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.trade terms of smt mounter machine
| Accepted delivery terms | EXW, FOB, CIF , CFR |
| Accepted payment currency | USD, CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
5.our services
6.Company profile
Shenzhen ETON automation equipment co., LTD., founded in 2011, is a company dedicated to SMT high-speed placement machine research and development, production, sales and after-sale technical services integrated national high and new technology, the double soft enterprise. The company always adhere to the "create national brands, to build international enterprise in China" goals, is committed to providing customers with "professional, efficient, low consumption" fully automatic SMT placement machine.ETON mission: professional, excellent technology, sharing the results.
We are a rapidly growing company. We have just completed an industrial park in jiangxi, China, at a cost of 150 million RMB.
We will vigorously explore the overseas market in the future.
We have also cooperated with engineers from Taiwan, Japan and Germany for a long time to jointly develop and improve the technology.
What are you still hesitating about? Come and contact us !
ETON---Quality placement machine equipment supplier !
Your best choice--- high speed mounter HT-f8 !
If you want to buy a mounter, please do not hesitate to choose us!
We will serve you wholeheartedly!
