تفاصيل المنتج:
شروط الدفع والشحن:
|
| حجم ثنائي الفينيل متعدد الكلور: | 50 * 50 مم ~ 350 * 400 مم | المشبك ثنائي الفينيل متعدد الكلور ؛ جي: | ضغط هوائي قابل للتعديل |
|---|---|---|---|
| النظام: | ويندوز 7 | البرمجيات: | r & d بشكل مستقل |
| عرض: | شاشة تعمل باللمس | جهاز الإدخال: | فأرة لوحة المفاتيح |
| رقم الكاميرا: | 2 | قوة: | 380AC 50 هرتز |
| استهلاك الطاقة: | 6 كيلو وات | وضع التركيب: | المجموعة تأخذ سنت العصا ، المائة تأخذ سنت العصا |
| مكونات الفضاء: | 0.2 مم | محطات التغذية: | 32 قطعة |
| فوهات: | 10 قطع | تصاعد السرعة: | 30000CPH ~ 35000CPH |
| اعالي الجبال: | 40 ملم |
1.product details

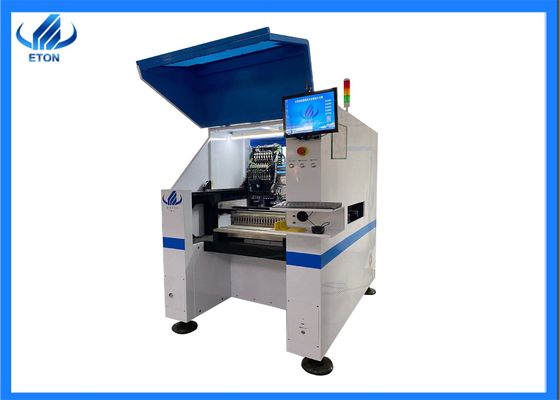

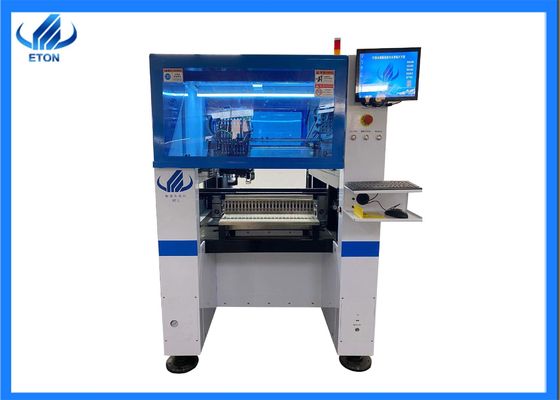

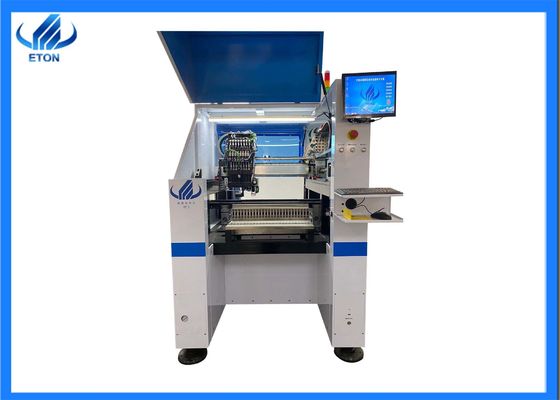

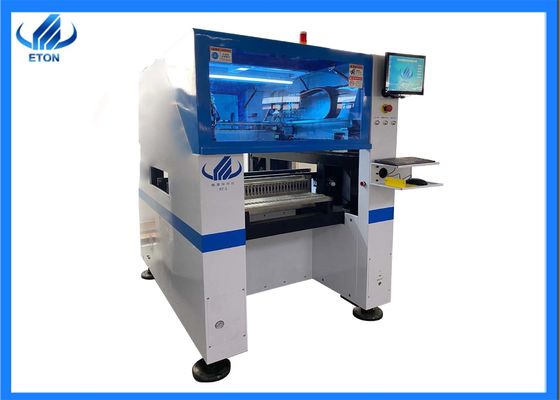

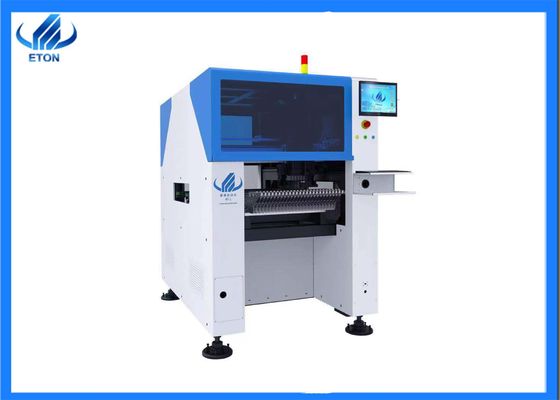

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
2.product Technical parameters of high speed pick and place machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
