تفاصيل المنتج:
شروط الدفع والشحن:
|
| حجم ثنائي الفينيل متعدد الكلور: | 80 * 350 ملم ~ 1200 * 350 ملم | المشبك ثنائي الفينيل متعدد الكلور ؛ جي: | ضغط هوائي قابل للتعديل |
|---|---|---|---|
| النظام: | ويندوز 7 | البرمجيات: | r & d بشكل مستقل |
| عرض: | شاشة تعمل باللمس | جهاز الإدخال: | فأرة لوحة المفاتيح |
| رقم الكاميرا: | 5 | قوة: | 380AC 50 هرتز |
| استهلاك الطاقة: | 6 كيلو وات | وضع التركيب: | مجموعة لأخذها ومجموعة لتركيبها |
| مكونات الفضاء: | 0.2 مم | محطات التغذية: | 68 قطع |
| فوهات: | 68 قطع | تصاعد السرعة: | 200000CPH |
| اعالي الجبال: | 13 ملم |

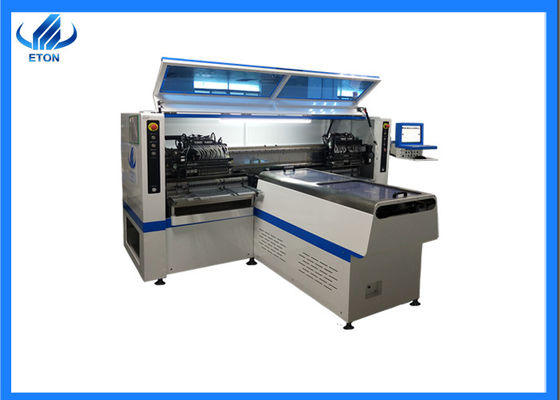

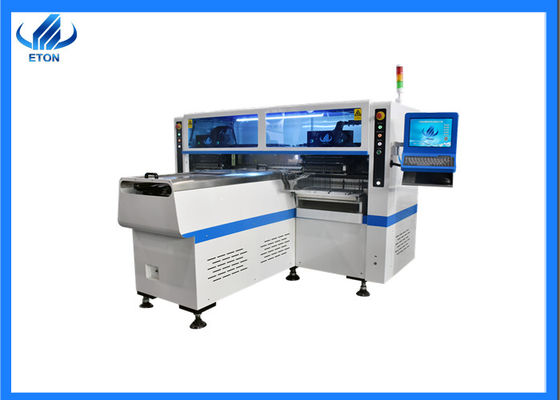

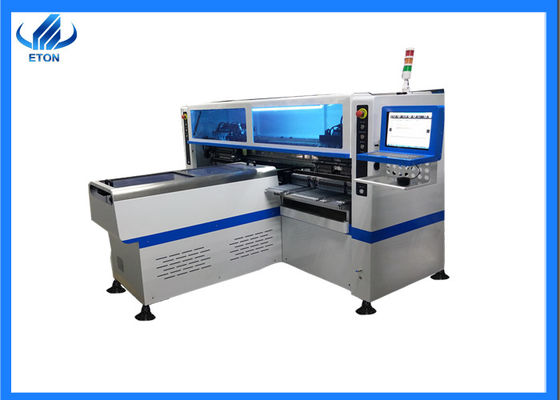

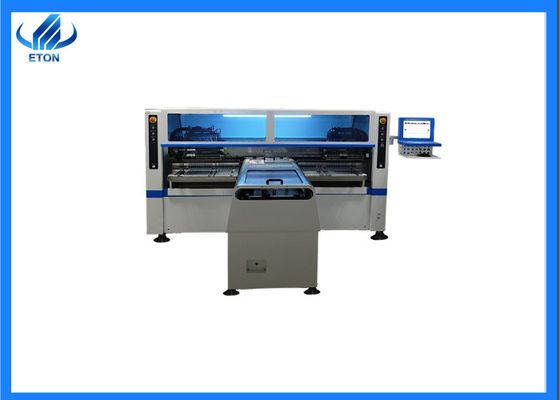

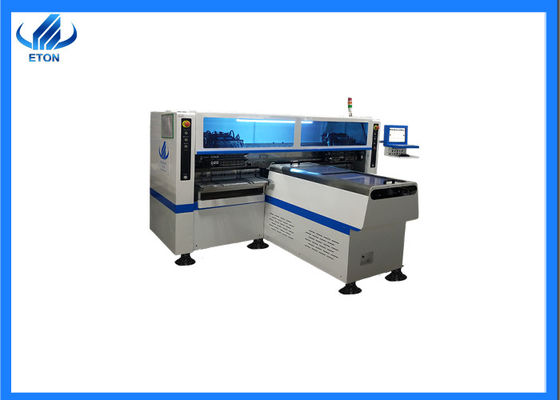

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
5.Company profile
6.Our Our certificates and certifications
7.our services
8. trade show
Industry related knowledge
A mounting machine consists of three parts: a mounting head, a bearing mechanism and a servo system driven by X-Y coordinates. The mount head is an intelligent manipulator, through the program control, automatically correct the position, pick up the components according to the requirements, accurately stick to the preset pad, complete the three-dimensional reciprocating motion. It is the most complex and critical part of the placement machine. The mounting head of the placement machine is composed of suction nozzle, visual alignment system, sensor and other components.
There are two kinds of mounting head: single head and long head, and long head is divided into fixed type and rotary type. The suction nozzle of the early single-head placement machine absorbs a component, realizes the component alignment through the mechanical alignment mechanism and gives the feeder a signal, so that the next component enters the suction position. But the patch is slow, and it usually takes 1 S. to attach a piece of components In order to improve the speed of the patch, people adopt the method of increasing the number of mount heads, that is, using multiple mount heads to improve the speed of the patch. The multi-head placement machine increased from single head to 3~6 mounting heads, no longer using mechanical alignment, but improved to a variety of forms of optical alignment, working separately absorb components, after the alignment and then paste to the designated position of the PCB. At present, the patch speed of this type of machine has reached the level of 30,000 components per hour, and the price of this kind of machine is low and can be used in combination. A rotating multihead structure can also be used, and the current patch speed in this way has reached ten thousand (4.5~5) per hour.
