تفاصيل المنتج:
شروط الدفع والشحن:
|
| حجم ثنائي الفينيل متعدد الكلور: | 250 مم * بأي طول | المشبك ثنائي الفينيل متعدد الكلور ؛ جي: | ضغط هوائي قابل للتعديل |
|---|---|---|---|
| النظام: | ويندوز 7 | البرمجيات: | r & d بشكل مستقل |
| عرض: | شاشة تعمل باللمس | جهاز الإدخال: | فأرة لوحة المفاتيح |
| رقم الكاميرا: | 5 | قوة: | 380AC 50 هرتز |
| استهلاك الطاقة: | 6 كيلو وات | وضع التركيب: | المجموعة تأخذ سنت العصا ، المائة تأخذ سنت العصا |
| مكونات الفضاء: | 0.2 مم | محطات التغذية: | 64 قطع |
| فوهات: | 64 قطع | تصاعد السرعة: | 200000CPH |
| اعالي الجبال: | 13 ملم |
product details

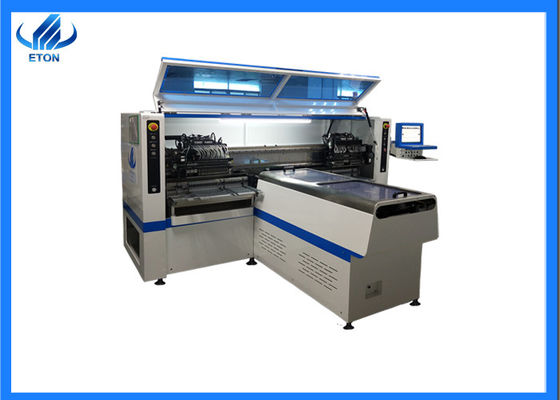

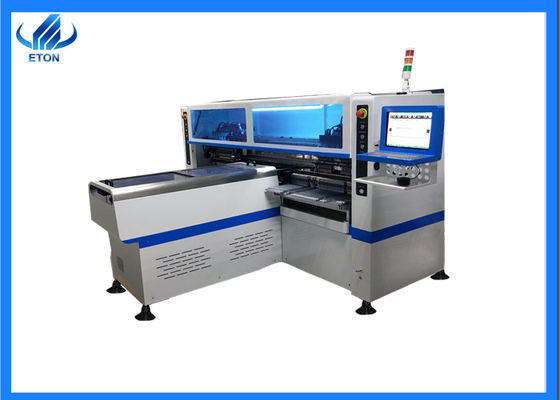

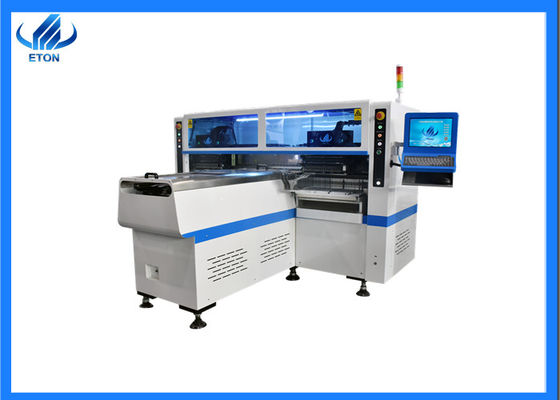

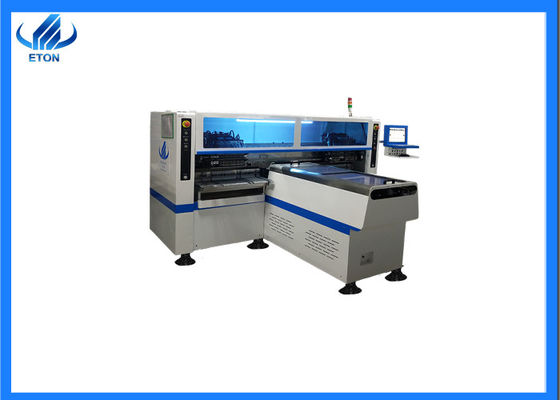

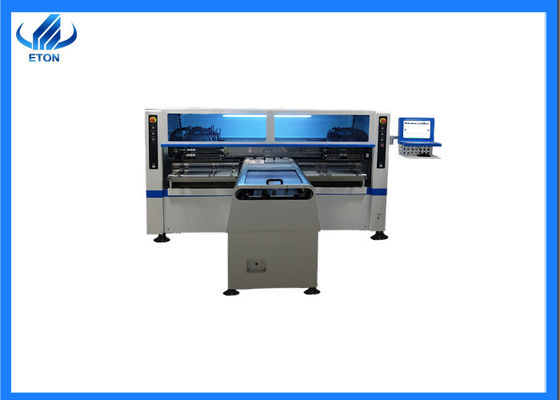

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
product Technical parameters of high speed pick and place machine
| Model number | HT-X9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
The dispenser is also called glue coating machine, glue dropping machine, glue beating machine, glue filling machine and so on, specially controls the fluid. And the fluid drip, coated on the surface of the product or the product inside the automatic machine, can achieve three-dimensional, four-dimensional path dispensing, accurate positioning, accurate control glue, no wire drawing, no leakage glue, no drop glue. The dispenser is mainly used for glue, paint and other liquid precision points, injection, coating, drip to each product precise position, can be used to achieve dot, line, circle or arc type.
If there are no bubbles in the process of product filling, a vacuum perfusion system is needed
If the liquid has additives or needs to be combined with vacuum defoaming, the barrel should be equipped with an electric mixer.
The temperature control system should be installed in the barrel or pipeline when the operation is affected by the temperature change.
