| Dimension: | 2700*2300*1550mm | PCB Size: | Max: 1200*330mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting mode: | Group picking and group placing |
| Mounting precision: | ±0.02mm (Repeat precision） | Mounting height: | Standard:≤5mm |
| Mounting speed: | 200000~250000 CPH | No.of feeders station: | 68 PCS |
| No.of head: | 68 PCS | Power: | 380AC 50Hz |
| Power consumption: | 6KW | X,Y,Z Axis drive way: | High-end magnetic linear motor and servo motor |
| تسليط الضوء: | Tube Light SMT Pick Place Machines,LED Production Line Pick Place Machine,Strip Light SMT Pick Place Machines,LED Production Line Pick Place Machine,Strip Light SMT Pick Place Machines |
||
High Speed 250000CPH Pick And Place Machine For Flexible Strip And Tube Light
Description of HT-F9 Pick and place machine
Dual arm magnetic linear LED high-speed pick and place machine, Producing 4 types materials at the same time, capacity reach 250000 CPH.
The SMT machine uses the suction nozzle on the head to absorb various components from feeders and mount them on the PCB board.
SMT pick and place machine is the main equipment in SMT production process, which can not be replaced by other equipment.
SMT production process is the solder paste coating, component mounting, reflow welding, it is the most major process in the SMT production process. In order to get good mounting quality, SMT pick and place machine should have good mounting process in addition to good equipment.
Main features
● Dual arm magnetic linear LED high-speed pick and place machine
● 68 feeder stations and 68 nozzles
● Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.
● Producing with 4 types materials at the same time with high capacity.
● Available for board with any proportion of LED chip and resistor.
● Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
● Calibration automatically, high precision, available for RGB.
● Exclusive patent technology: Group to take and group to mount.
Main Technical Parameter
| Dimension | 2700*2300*1550mm |
| PCB length width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group to take and group to mount |
| Mounting precision | ±0.02mm |
| Mounting height | Standard:≤5mm |
| Mounting speed | 200000~250000 CPH |
| Components |
LED 3014/3020/3528/5050 and resistors, capacitors,bridge rectifiers |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 68 PCS |
| Power | AC 380V 50Hz |
| Power consumption | 6 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

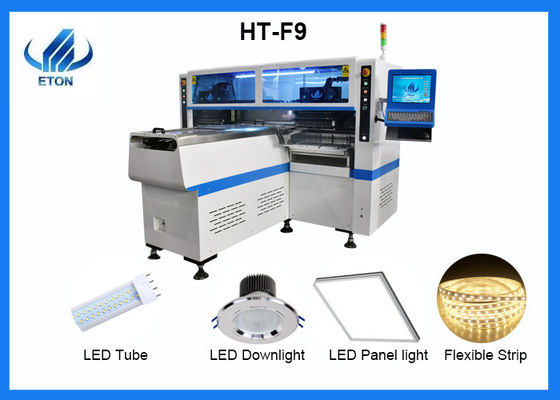

HT-F9 Picture
The application of HT-F9 Pick and Place Machine
LED Tube,flexible strip light,panel light etc.
HT-F9 semi-automatic production line
Company Introduction
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
4. Good and professional service. Provide engineer Door-to-door service, support video online training, video training.
share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Certification
We got 9 invention patents, 112 practical patents,12 software patents.
Our client
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Our exhibitions
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Domestic: Guangzhou Guangya Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Our after-sales Services
Package and Delivery
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix in the wood carton, effectively prevent collision and shock.
FAQ:
Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India and Egypt office and local engineer, etc.
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: What machine can I buy from you?
A: Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Q: Do you have any customers in India? How many machines are there in India?
A: Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
