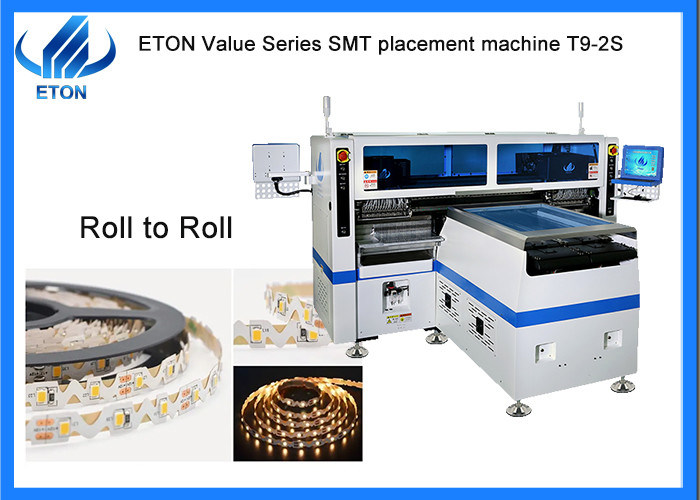

Automatic SMT Placement Machine For 200m Long LED Strip Light

Automatic placement machine for 200m long LED strip light SMT

Machine main features

• Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
• Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
• Ultra high speed capacity: 500,000 CPH
• Intelligent electric feeder,supporting high-speed machine series.
• Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
• The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
• The range of feeder station is double of placement four kinds of materials at the same time.
• Automatic production with identification date, correction and fill missing component automatically.
• Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
• The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
• With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
• Complaint with CE standards.

Machine main parameter

Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

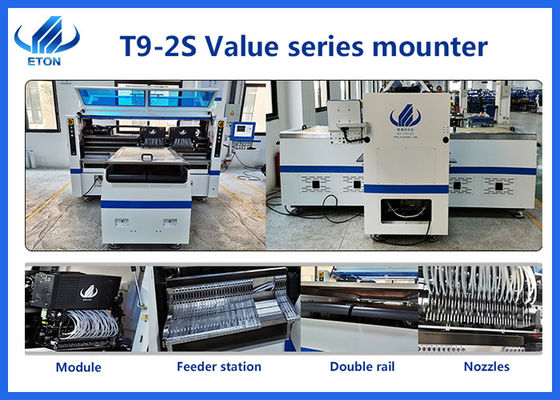

Machine main part

Service

• We provide whole line solution for our clients needs.
• We have some official site in India as Mumbai, Dammam and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
• As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.

FAQ

Q. What is your machines quality?

A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.

Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q. Is the machine easy to operate?

A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
