تفاصيل المنتج:
شروط الدفع والشحن:
|
| رأس الطابعة: | اثنين من دبوس مغناطيسي/طاولة من أعلى إلى أسفل قابلة للتعديل | سمك ثنائي الفينيل متعدد الكلور: | 0.5 ~ 5 مم |
|---|---|---|---|
| النموذج: | ET-AL1025L | الجهد: | التيار المتردد: 220 ± 10٪ ، 50 / 60HZ 1Φ 1.5KW |
| نظام التحكم: | الكمبيوتر | رأس مطبوع: | رأسان مستقلان للطباعة يعملان بمحرك |
| التسليم: | خلال 30 يوما | نظام التثبيت: | مشبك الحافة ثابت |
| ارتفاع ناقل الحركة: | 900 ± 40 مم | نوع اللوحة: | طابعة الشاشة |
| التطبيق: | خط إنتاج SMD | ارتفاع النقل: | 900+-40ملم |
| تسليط الضوء: | Strip Light Automatic Stencil Printer,Automatic Stencil Printer with Diagnostic System,SMT Stencil Printer with Diagnostic System,Automatic Stencil Printer with Diagnostic System,SMT Stencil Printer with Diagnostic System |
||

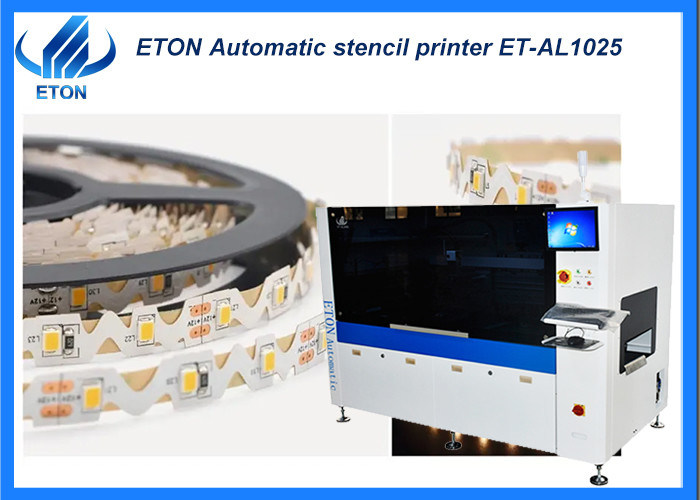

Good performance Built-in software diagnostic system Strip light automatic printer
Machine configuration
● Programmable suspension printing head;
● Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
● Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
